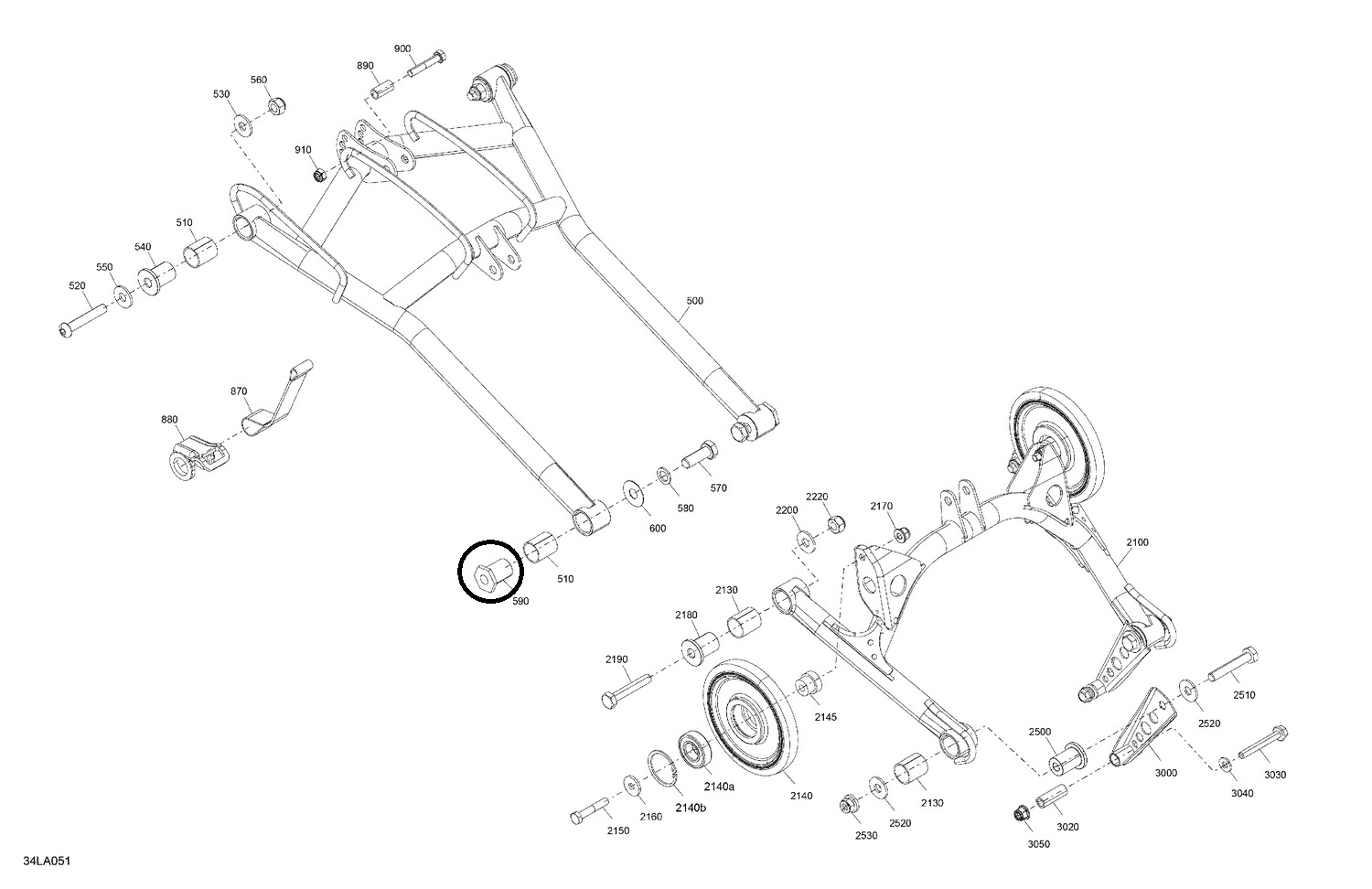

Lynx chassis front strut lower mount o-ring bushing – With needle bearing, VT13200

Description

Lynx front stand lower end bushing with needle bearing.

Attachment to slide frame

Year 2017 (2015)>

Equipped with o-rings, which improves lubricant retention on the bearings.

Includes needle bearing.

Attachment with M12 screw, check the sled base to make sure it is suitable for the target.

(base front stand bushing inner diameter 25.5 mm, length approx. 30 mm)

The base operation becomes more sensitive

Remove old slide bearings and clean the bushing ends well to ensure adhesion of the locking glue.

Needle bearings must be attached to the bushing ends with a strong locking glue.

Install with inner bushing in the correct position, let the glue dry well > install the bushings well greased in place / grease the needle bearing well

Ps. The bushings of the stands may be tight, so if so, it is recommended to grind them with a suitable tool. (e.g. drill with a rotary blade)
