Lynx chassis mounting o-ring bushing – With needle bearing, VT13197

Description

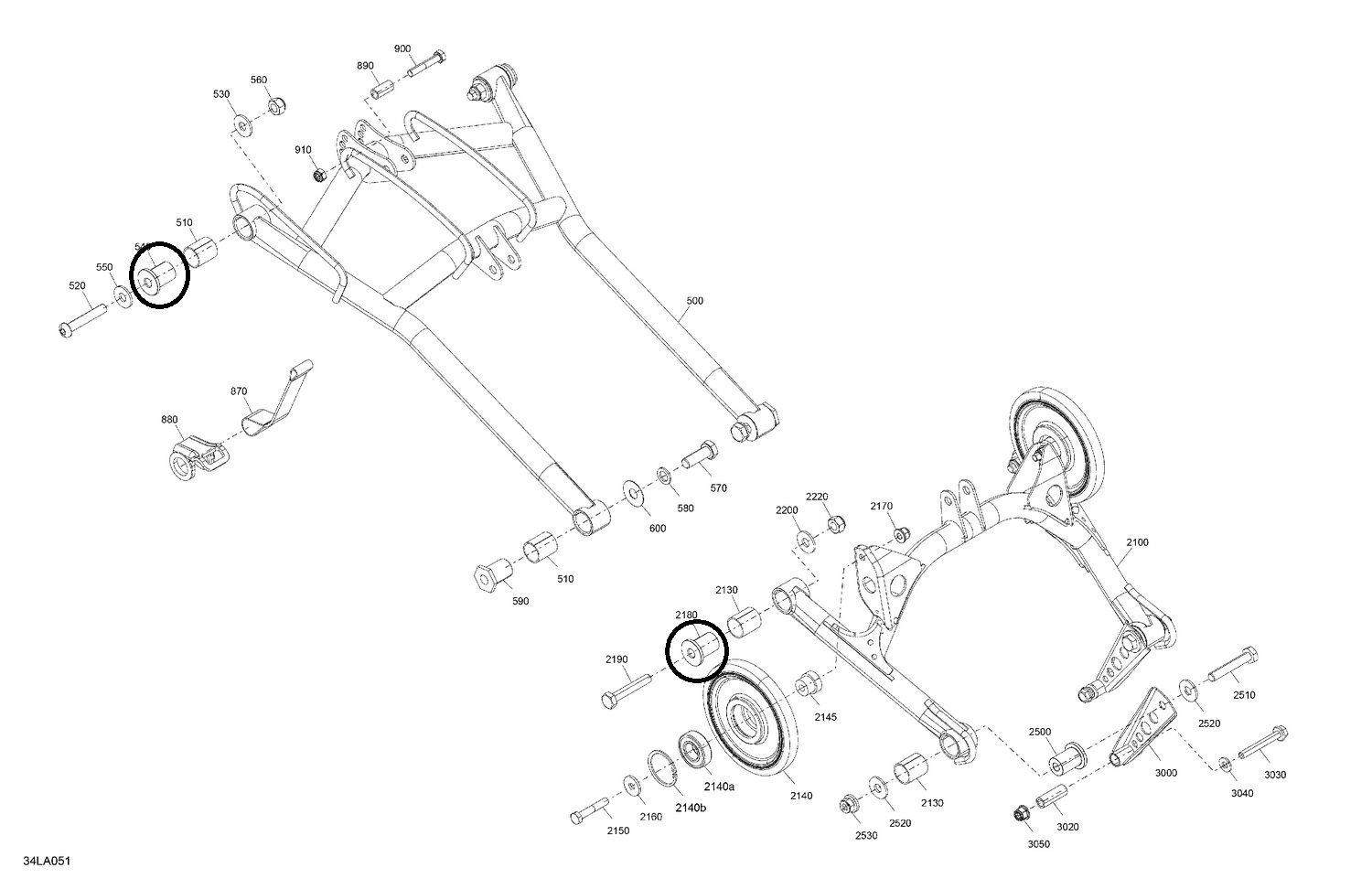

Lynx front/rear arm sleeve to the frame with needle bearing, VM 2015 >

Equipped with o-rings, which improves the lubricant retention on the bearings.

Includes needle bearing/2-piece sleeve.

The operation of the chassis becomes more sensitive.

Length of the chassis sleeve approx. 30 mm, inner diameter 25.5 mm

Remove old plain bearings.

Clean the ends of the sleeves on the upper end of the front/rear stand well to ensure adhesion of the locking glue.

The needle bearings must be attached to the ends of the sleeves with a strong locking glue.

Install completely in the middle, let the glue dry > install the sleeves well greased in place / grease the needle bearing well.

Ps. The sleeves of the stands may be tight, so if so, it is recommended to grind them with a suitable tool. (e.g. drill with a spindle disc)
